Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 500 W RMS x 1 |
| @ 3 Ω | 750 W RMS x 1 |
| @ 2 Ω | 1000 W RMS x 1 |
| @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 500 W RMS x 1 |
| @ 3 Ω | 700 W RMS x 1 |
| @ 2 Ω | 900 W RMS x 1 |
| @ 1.5 Ω | N/A |
General Specifications
| Frequency Response | 20 Hz - 150 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >75 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >45 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 2 V - 10 V RMS |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 200 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | No |
| Filter Defeat Function | No |
| Infrasonic Filter | none |
| Bass Boost EQ | 0 to +12 dB @ 45 Hz |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional (RBC-1) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |

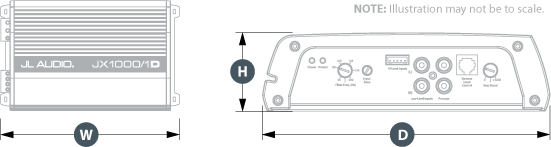

Physical Specifications
| Height (H) | 2.09 in / 53 mm |
| Width (W) | 10.94 in / 278 mm |
| Depth (D) | 7.68 in / 195 mm |
| Net Weight | 3.75 lb / 1.70 kg |
