Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω | 70 W RMS x 4 |
Main Channels @ 2 Ω | 100 W RMS x 4 |
Main Channels - Bridged @ 4Ω | 200 W RMS x 2 |
Subwoofer Channel @ 4 Ω | 225 W RMS x 1 |
Subwoofer Channel @ 3 Ω | 325 W RMS x 1 |
Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
Subwoofer Channel @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω | 60 W RMS x 4 |
Main Channels @ 2 Ω | 90 W RMS x 4 |
Main Channels - Bridged @ 4Ω | 180 W RMS x 2 |
Subwoofer Channel @ 4 Ω | 200 W RMS x 1 |
Subwoofer Channel @ 3 Ω | 250 W RMS x 1 |
Subwoofer Channel @ 2 Ω | 350 W RMS x 1 |
Subwoofer Channel @ 1.5 Ω | N/A |
General Specifications
Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
Frequency Response (Subwoofer Channel) | 10 Hz - 500 Hz (+0, -1dB) |
S/N Ratio, referred to highest rated power (Main Channels) | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
Damping Factor @ 4 Ω | >150 / 50 Hz |
Damping Factor @ 2 Ω | >75 / 50 Hz |
THD+N @ Rated Power (Main Channels) | <1% @ 2 Ω per Ch. |
THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 Ω per Ch. |
Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Signal Processing
Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
Filter Slope(s): Channels 1 & 2 (front) | 12 dB/octave |
Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 500 Hz |
Filter Mode(s): Channels 3 & 4 (rear) | High-Pass only |
Filter Slope(s): Channels 3 & 4 (rear) | 12 dB/octave |
Filter Frequency Range: Channels 3 & 4 | 50 Hz - 500 Hz |
Filter Mode(s): Subwoofer Channel | Low-Pass only |
Filter Slope(s): Subwoofer Channel | 12 dB/octave |
Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
Detented, Calibrated Filter Freq. Potentiometers | No |
Filter Defeat Function | No |
Infrasonic Filter: Subwoofer Channel | No |
Remote Level Control | Optional (RBC-1) |
Remote Level Modes | Sub Ch. |
Channel Input Mode Switch | Yes (2/4/6 ch.) |
Pass-Through Preamp Output | No |
Source Channel Selection for PreOuts | N/A |

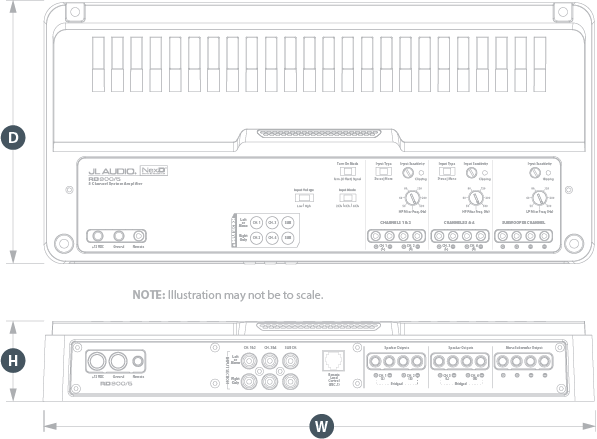

Physical Specifications
Height (H) | 2.13 in / 54 mm |
Width (W) | 14.66 in / 372 mm |
Depth (D) | 6.96 in / 177 mm |
Net Weight | 6.15 lb / 2.79 kg |
